Fluid Management Tubing & Fittings

Materials

• Standard materials including PVC (DEHP, non DEHP) polycarbonate, HDPE, LDPE, and polyurethane

More on Materials

Dimensions

• OD range: 0.020” (0.508 mm) min; 1.250” (31.75 mm) max
• ID range: 0.010” (0.254 mm) min; 1.200” (30.48 mm) max
• Tolerances may vary depending on durometer, material, and size of tubing
• Up to 6 lumens depending upon size or material

Shop High Pressure Braided Tubing

Known for its high quality, our Adam Spence^® High-Pressure Braided Tubing was developed in the early 1990s. Since then, we’ve become the world’s leading manufacturer of high-pressure braided tubing for vascular balloon inflation, contrast injection, and vacuum procedures.

Standard Cut Lengths

• 7"–102" (178 mm–2590 mm)

Dimensions

• 0.071” x 0.142" (1.80 x 3.61 mm)
• 0.088” x 0.188" (2.24 x 4.78 mm)
• 0.110” x 0.188" (2.79 x 4.78 mm)

Material

• Polyurethane with braided monofilament

Test & Analytical Capabilities

• Constant working pressure of 1200 psi
• Burst pressure exceeding 1700 psi
• High flexibility
• High clarity
• Available with or without UV or solvent-bonded connectors

Shop Vitalmed Components

Our Vitalmed product line features single-use plastic components for the medical and pharmaceutical industries, including bags, clamps, luers, caps, chambers, spikes, valves, and assemblies.

Luers

We offer a large selection of luers and luer accessories in the industry.

• Male & female luers
• Luer adapters
• Luer connectors
• Luer lock

Bags

We offer single-use one-, two-, and three-port medical bags for preparing, storing, and transporting fluids and biopharmaceutical solutions.

• Collection bags
• Eva bags
• Heating bags
• PVC bags
• PVC-free bags
• TPN bags

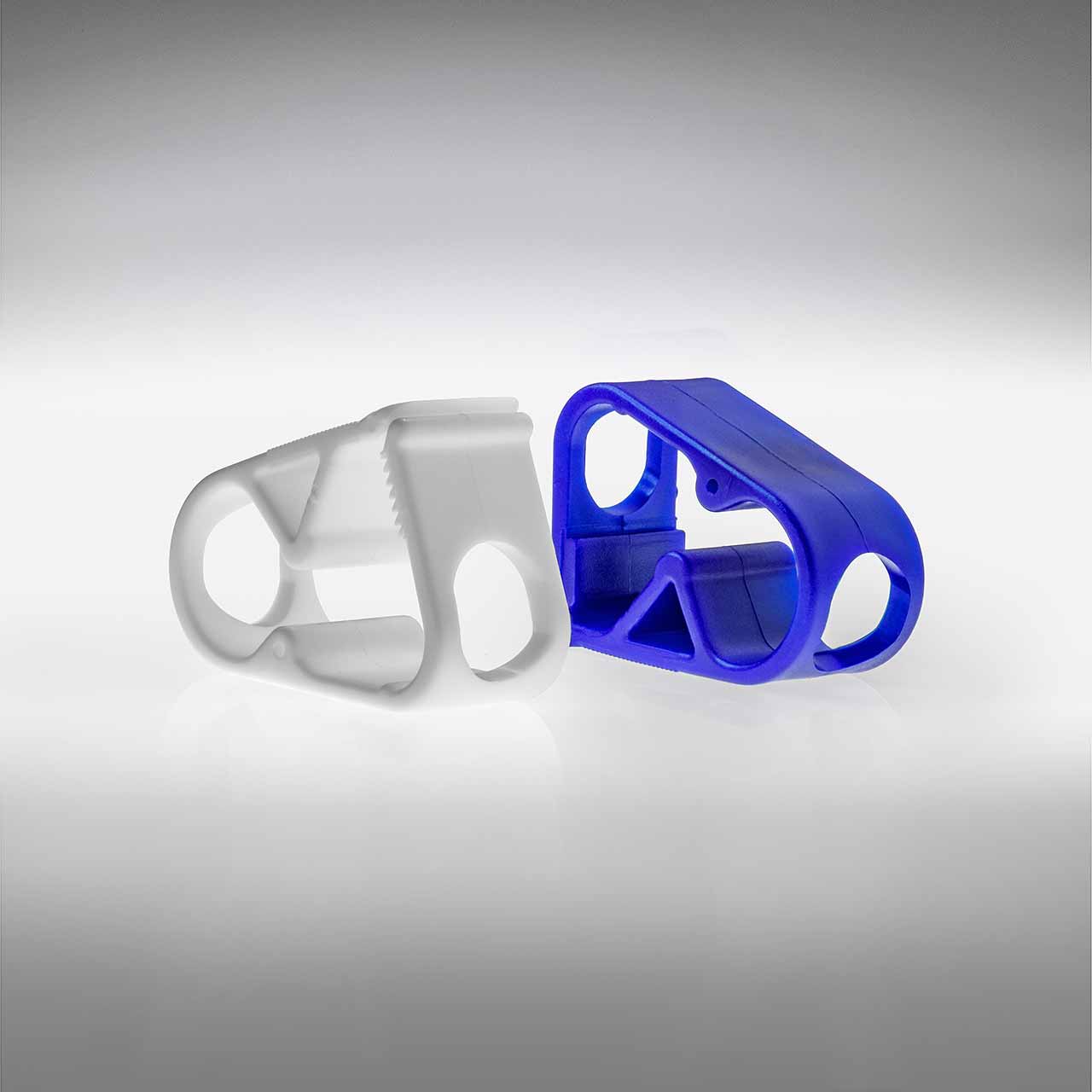

Clamps

We have a variety of single-use and multiuse clamps in assorted sizes and colors. Many of our products can be sterilized by autoclave, EtO, and gamma.

• Pinch clamps
• Slide clamps
• Roller clamps
• Flow clamps
• Re-opening clamps
• Non-reopening clamps
• Closure clamps
• Catheter clamps
• Hose clamps

Chambers

We offer vented and nonvented chambers and chamber assemblies for fluid administration in a variety of sizes and colors.

• IV drip chambers
• Micro drip chambers
• UV-blocking chambers

Spikes & Caps

We offer vented and nonvented spikes, specialty spikes, and caps.

• Transfer spikes
• Spike assemblies
• Spike filters
• Spike aps
• Barbed connectors

Valves

We offer a variety of valves, stopcocks, and swabs.

• High-flow check valve
• In-line check valve
• Luer-activated check valve
• Duckbill check valve
• Dual-check valve
• 1-, 2-, 3-, and 4-way fluid direction stopcocks
• 1-way stopcock
• 3-way stopcock
• Swabs

Assemblies

• IV sets
• Pump sets
• Suction assemblies
• Saline sets

Download Vitalmed Catalog
