Laser Processing

Drilling

Our laser technology includes high-precision laser drilling, with micron-level tolerances. We produce very small, complex features in a variety of materials, using laser drilling methods such as direct write, trepanning, and mask projection, with no heat effects or material damage.

Overview: Why Use Laser Drilling?

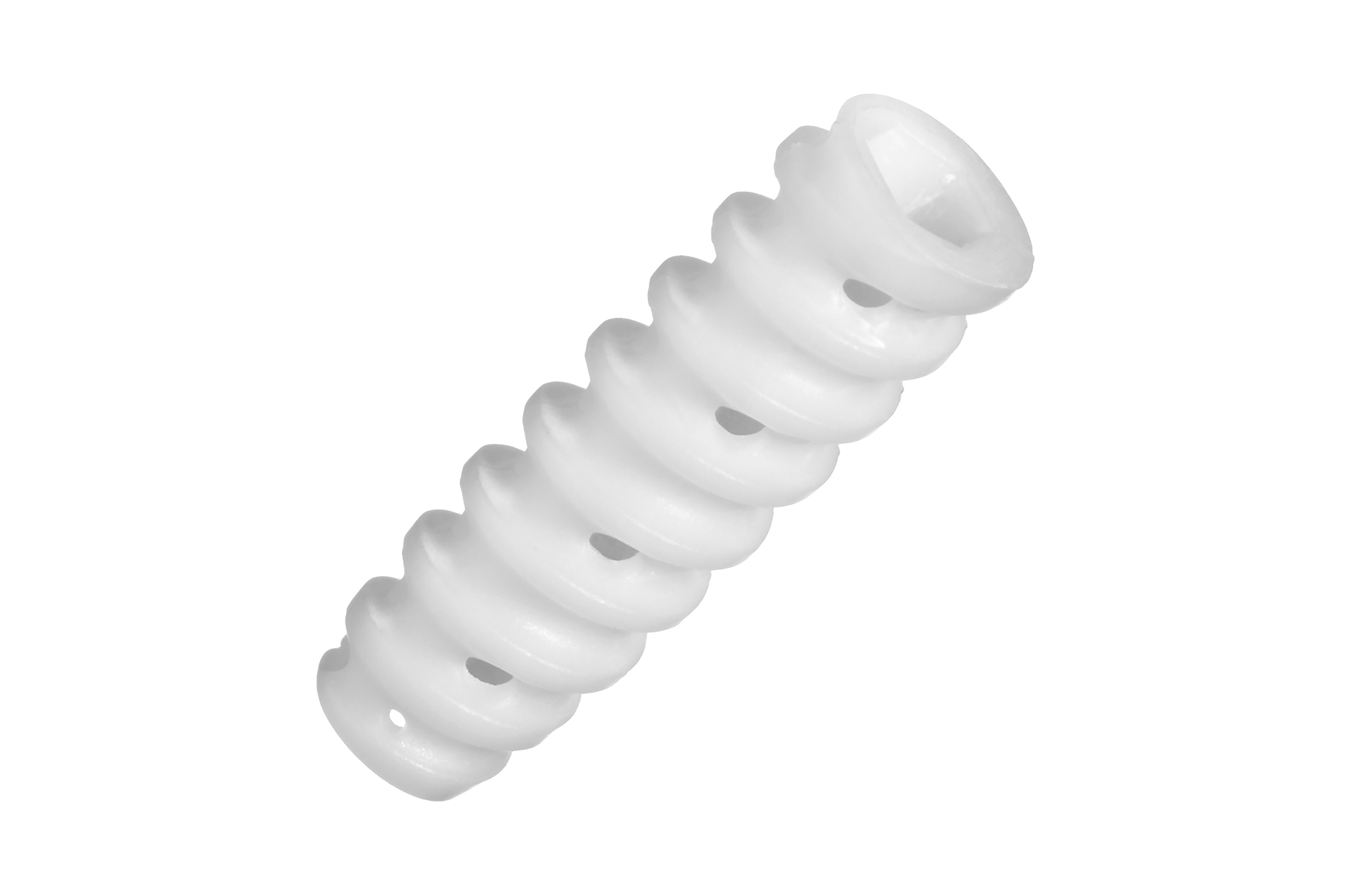

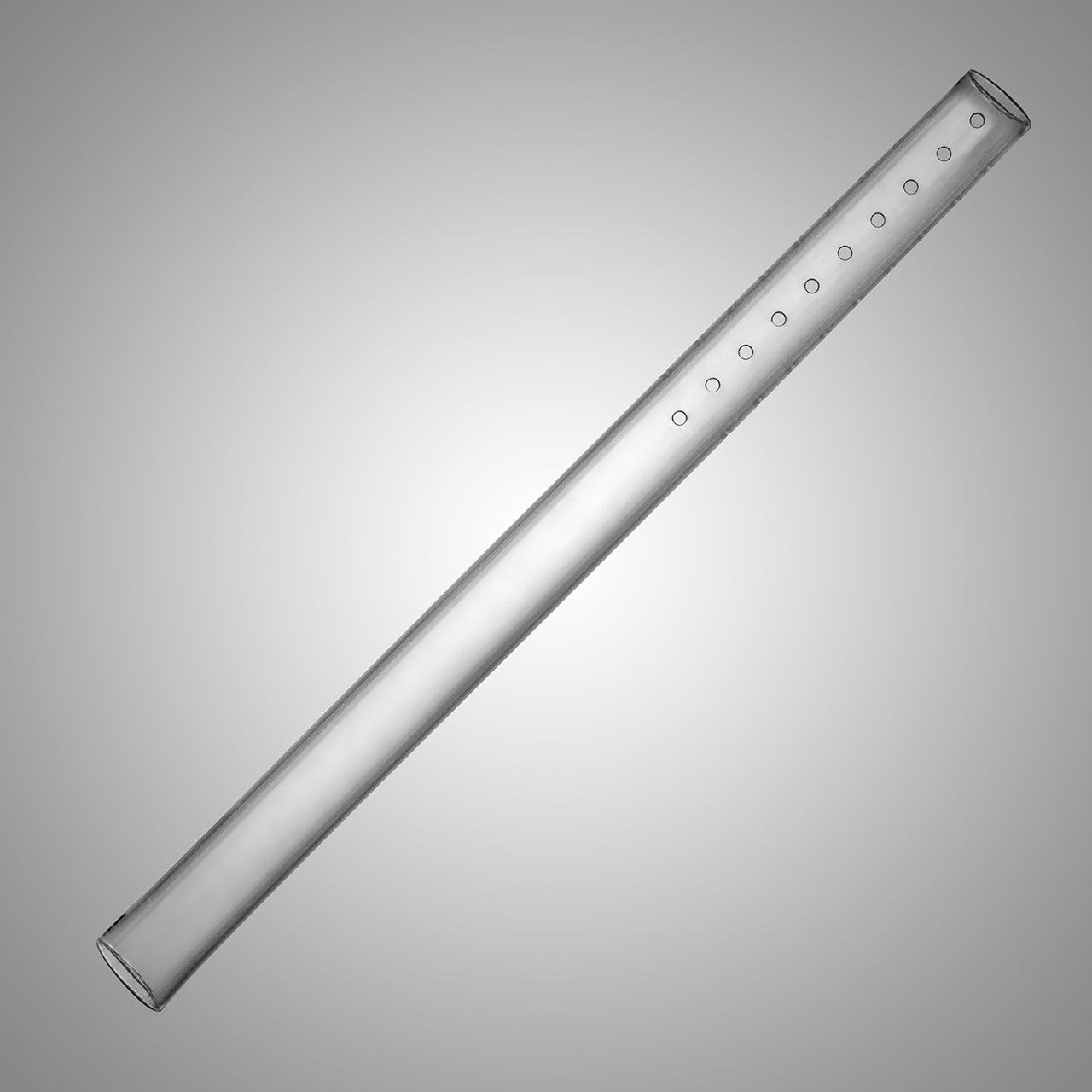

Many manufactured parts today call for microscopic features that can be created only with laser drilling. This highly adaptable, versatile, and reliable micromanufacturing process is used in a broad range of industries. We customize our laser manufacturing and post-laser processing to match your unique drilling needs, optimizing applications such as micro-holes, hole arrays, blind wells, and specialized portals.

Laser Drilling Fast Facts

  • Works on a wide range of materials: Ceramics, glass, metals and alloys, polymers, semiconductors, and more.
  • Holes of different geometric shapes at various angles are possible.
  • Holes with high aspect ratios of 10:1 or greater are possible.
  • Precise controls and high speeds produce consistent and repeatable results.
  • Drilling rates can be as high as 1,000 holes per second, or even higher for some applications.
  • Minimal heat effects reduce risk of thermal damage, cracking, or stress fractures.
  • Laser drilling does not require tooling or other parts that wear out or need to be replaced.
  • Because the removed material is ablated (vaporized), there is no residue that must be cleaned from the product.

High-Precision Features

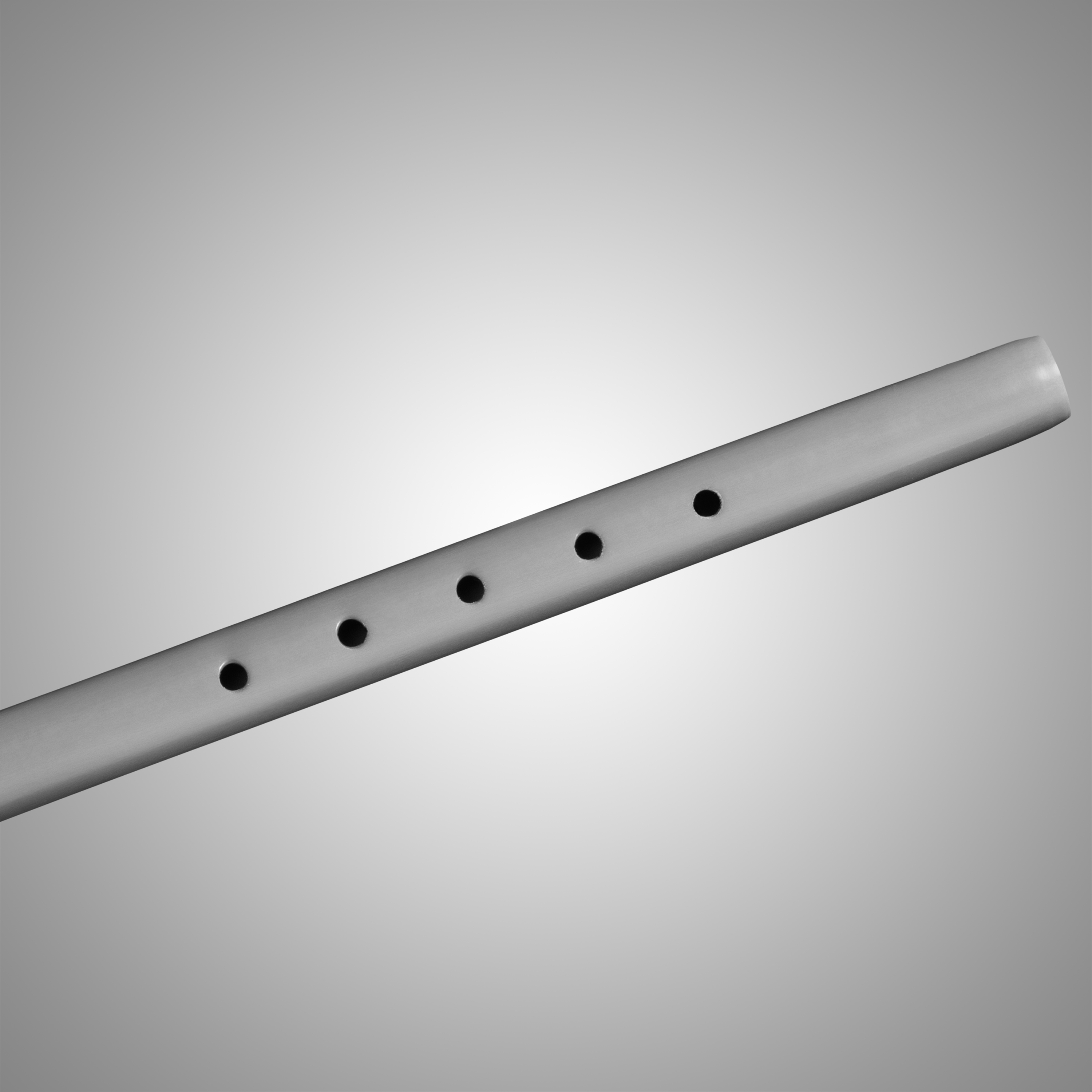

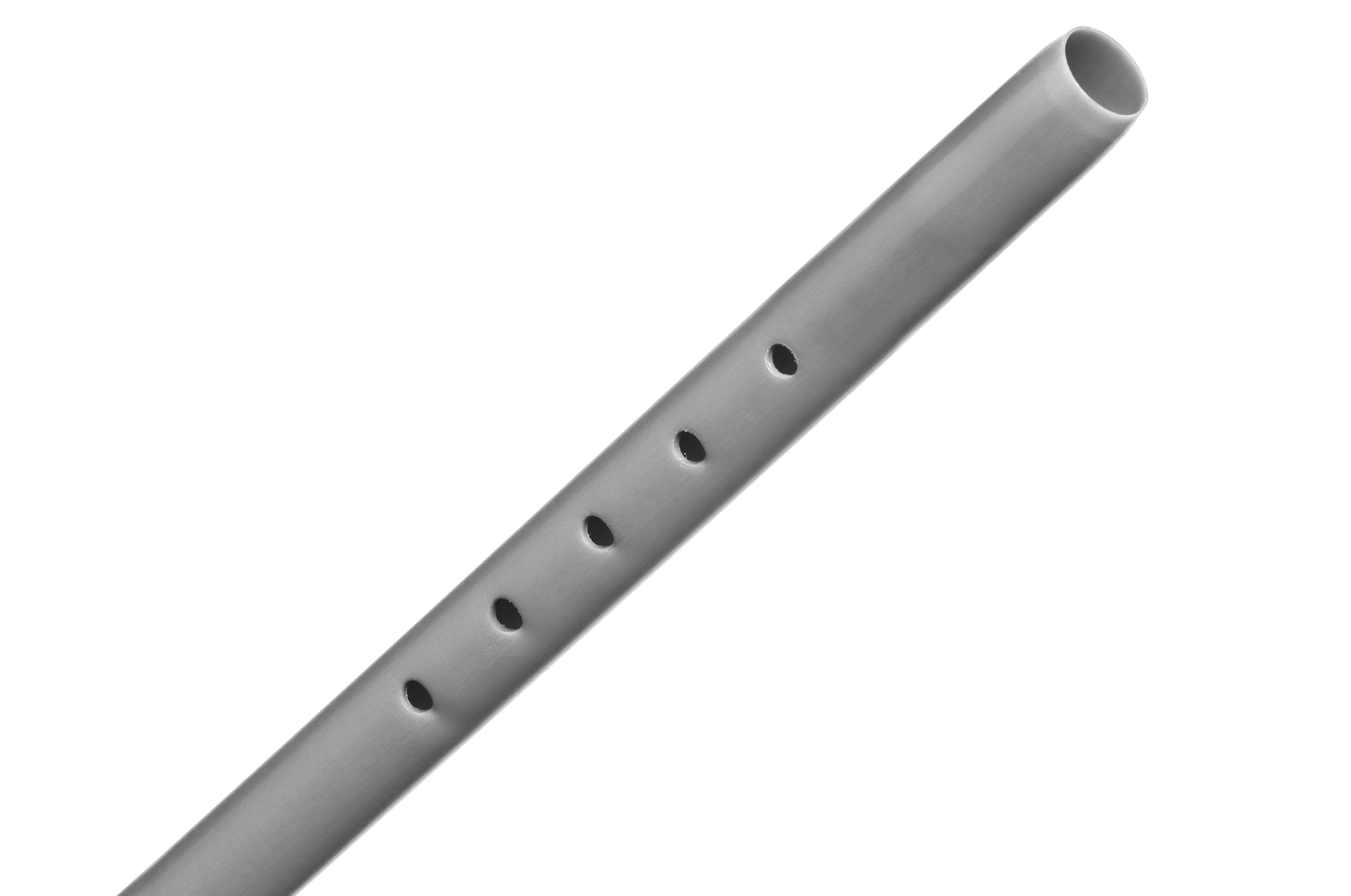

Micron-scale holes (“micro-holes”) as small as 5 microns in diameter. These small-diameter holes can be laser-drilled (“micro-hole drilling”) in a variety of patterns with the highest precision. By using lasers, this drilling can be done without burrs or residual material that would potentially plug the holes, which is especially critical for embolic protection devices, infusion catheters, and drug-delivery catheters that rely on high densities of tiny laser-drilled holes to administer drugs at constant rates. In fact, laser drilling can create microscopic features that no other form of machining can deliver.

Meeting Application Challenges—Heat

Many components used to manufacture medical devices are made from thermoplastic materials, which are sensitive to heat. Ultrafast lasers can drill holes quickly, with high precision and little to no heat damage.

Our lasers are carefully calibrated to avoid melting the edge material or creating other variances that can impact performance, as even the slightest melting can cause some holes to become blocked.

Meeting Application Challenges—Motion

Thermoplastic materials are also flexible. If not held perfectly flat, that material may lay above or below the focal point of the laser, which can result in unwanted melting. Curved or variable surfaces are also challenging to drill and must be held securely.

Our teams use the latest precision-positioning systems, as well as our own proprietary set-ups and fixtures, to secure rounded components in place with no movement, resulting in consistent reliability and quality.

Laser Drilling Processes and Methods

When designing a hole-drilling project, Spectrum Plastics Group engineers consider the type and thickness of material and hole specifications, including dimensions, hole depth, edge quality, and taper. They then match these, and production volume considerations, to the type of laser and laser wavelength (e.g., femtosecond laser pulses) needed, as well as the method of laser drilling.

Some methods of laser drilling include:

  • Single shot. This method uses a single focused laser beam to rapidly drill holes. Thousands of holes can be produced in a short amount of time.
  • Image projection (mask illumination). Mask illumination uses an imaging lens to image a mask at a plane other than that of the focal point of the lens. Mask size and shape provide control of the precise hole geometry, size, and shape, allowing for complex features.
  • Percussion laser drilling. This process uses a “rapid-fire burst-of-pulses” micro-machining method. Varying the laser pulse duration, spot size, optics, and beam characteristics can produce high-quality holes with consistent edge quality.
  • Trepanning laser drilling. Trepanned laser drilling removes a cylindrical core from a substrate. The position of the beam or substrate is moved in conjunction with a predetermined laser beam “overlap” to achieve the desired edge quality and production throughput.

Your Contract Manufacturer for Laser Drilling

Outsourcing some or all of your manufacturing process means you no longer have to dedicate resources in-house. Often, working with a specialty contract manufacturer means getting superior expertise and quality control while eliminating unexpected costs.

Drilling processes can especially benefit from outsourced laser drilling. A specialized contract manufacturer, like Spectrum Plastics Group, will have the best laser technology, as well as industry and processes experts, compliance and control systems, and experience handling a wide range of applications. We provide contract manufacturing for laser drilling and other processes, whether for quick-turnaround prototyping or a full production run.

The Highest Quality Control

We often drill features that are too small to be seen by the naked eye. So our compliance and validation processes are continuously monitored and adjusted to maintain an effective quality management system, with tight tolerances in the sub-micron range.

Our tools for performing visual inspections on your parts and products include high-powered microscopes and specialized instruments for micro-measurement of linear dimensions, height, depth, and 3D profile.

Extra challenges can arise when micro-holes are required on the sloped or conical surfaces of balloons, which requires special fixturing. Multi-axis positioning controls and inline optical inspections are required during production to assure quality and repeatability. These methods have been developed here in-house and are especially valuable for customizing unique balloon shapes and sizes.

Success Through Collaboration

Laser drilling will continue to advance as companies propose more complex designs, materials, and added functionality. Often our best solutions result from working directly with the customer’s engineering teams, early in the design process, to create a customized laser-drilling process that pushes the technical limits of laser micro-machining.
